How to Hook Up Code Reader to Car: Complete Step-by-Step Guide

Learning how to hook up code reader to car is usually simple. Turn the vehicle off, locate the 16-pin OBD2 port under the driver’s side dashboard, plug in the code reader, and turn the ignition to the ON position. The scanner should power on and begin communicating with the vehicle’s computer.

The complete process is explained below. You will learn where to find the diagnostic port, how to connect wired and wireless code readers, which ignition position to use, how to retrieve trouble codes, and what to do if the reader does not connect.

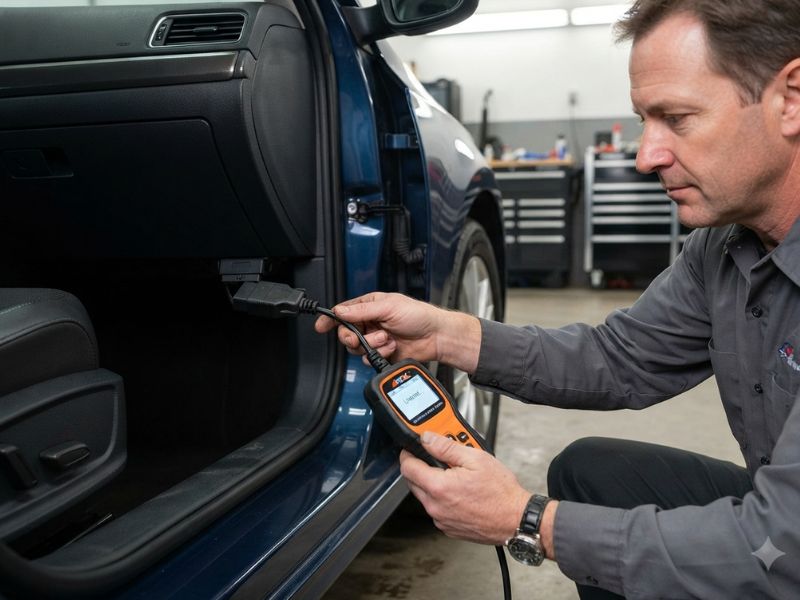

How to Hook Up Code Reader to Car Correctly

Most modern car code readers connect to the vehicle through a standardized OBD2 diagnostic port, also known as the Data Link Connector or DLC.

The basic connection process is:

Park the vehicle safely.
Turn off the engine.
Locate the OBD2 port.
Plug the code reader into the port.
Turn the ignition to the ON position.
Allow the scanner to connect.
Select the option to read codes.

You usually do not need additional cables or batteries. Most wired code readers receive power directly from the vehicle through the diagnostic connector.

Bluetooth and Wi-Fi readers connect to the same port, but they send the diagnostic information to a smartphone or tablet.

What Is a Car Code Reader?

A car code reader is a diagnostic device that communicates with the vehicle’s onboard computers.

When a vehicle computer detects an abnormal condition, it stores a Diagnostic Trouble Code, commonly called a DTC.

A basic code reader can normally retrieve:

Check Engine Light codes
Stored diagnostic codes
Pending codes
Permanent emissions codes
Freeze-frame information
Readiness monitor status

More advanced scanners may also access:

Transmission modules
ABS systems
Airbag modules
Body control systems
Electronic parking brakes
Manufacturer-specific information

The scanner’s capabilities determine which warning lights and control modules it can check.

Make Sure Your Vehicle Supports OBD2

Before connecting a code reader, confirm that your vehicle uses OBD2.

Most passenger vehicles sold in the United States from the 1996 model year onward support OBD2.

A standard OBD2 vehicle normally has a 16-pin, trapezoid-shaped diagnostic connector inside the driver’s compartment.

Older vehicles may use OBD1 systems with manufacturer-specific connectors and procedures. A normal OBD2 reader usually cannot communicate with an OBD1 vehicle without special equipment.

Heavy-duty trucks, imported vehicles, and certain specialty vehicles may use different diagnostic systems.

Where Is the OBD2 Port Located?

The OBD2 port is usually located inside the vehicle near the driver.

Start by looking underneath the steering wheel.

Common locations include:

Below the steering column
Under the driver-side dashboard
Above the brake pedal
Near the hood-release handle
Beside the interior fuse box
Behind a small dashboard cover
Near the center console

The connector is normally within reach of the driver’s seat and should not require major dashboard disassembly.

It has a trapezoid-shaped opening with up to 16 metal terminals.

If you cannot find it, check the owner’s manual or search for the OBD2 port location using the vehicle’s exact year, make, and model.

Step 1: Park the Vehicle Safely

Park the vehicle on a flat surface.

Place an automatic transmission in Park. Place a manual transmission in Neutral and apply the parking brake.

Turn off unnecessary electrical accessories, including:

Headlights
Climate control
Radio
Heated seats
Phone chargers

Reducing electrical load helps maintain stable battery voltage while the scanner communicates with the vehicle.

Do not attempt to connect or operate the scanner while driving.

Step 2: Turn the Ignition Off

Begin with the ignition turned off unless the scanner manufacturer gives different instructions.

Connecting the device with the ignition off allows you to align the plug carefully and reduces the chance of interrupting communication.

Many professional scanners can be connected while the engine is running, but connecting first and turning the ignition on afterward is easier for beginners.

Step 3: Inspect the Diagnostic Port

Before inserting the scanner, look at the OBD2 connector.

Check for:

Dirt or debris
Bent pins
Corrosion
Broken plastic
Loose mounting
Another device already connected

Remove any insurance tracker, performance tuner, Bluetooth adapter, or other accessory already plugged into the port.

Do not insert a screwdriver, test light, jumper wire, or other metal tool into the OBD2 connector.

The port contains power, ground, and communication circuits. Shorting the wrong terminals can blow a fuse or damage vehicle electronics.

Step 4: Plug In the Code Reader

Align the code reader’s connector with the OBD2 port.

Because the connector is trapezoid-shaped, it should fit in only one direction.

Push the plug in gently but firmly until it is fully seated.

Do not force it. If it does not fit easily, remove it and check the direction.

A loose connection may cause:

Blank scanner screen
Intermittent power
“No Link” message
Communication failure
Incomplete scan results

Most wired scanners turn on immediately after being connected. Others may remain off until the ignition is switched on.

Step 5: Turn the Ignition to ON

After connecting the scanner, turn the ignition to the ON position without starting the engine.

For a traditional key-operated vehicle, turn the key until the dashboard warning lights illuminate. Do not crank the engine.

For a push-button vehicle, press the start button without pressing the brake or clutch pedal.

Some push-button vehicles require pressing the button twice to enter full ignition-on mode. Check the owner’s manual if the dashboard does not fully activate.

The Check Engine Light, battery light, oil light, and other warning indicators may illuminate during the normal bulb test.

Step 6: Wait for the Scanner to Connect

Allow the scanner a few moments to establish communication with the vehicle.

A basic reader may automatically detect the correct OBD2 protocol.

An advanced scan tool may ask you to enter:

Vehicle year
Manufacturer
Model
Engine size
VIN

Enter the information correctly. Choosing the wrong vehicle can prevent access to manufacturer-specific systems or produce incorrect descriptions.

A successful connection may display messages such as:

Linking
Communicating
Protocol detected
Vehicle identified
Connection successful

Do not unplug the reader while it is communicating.

Step 7: Select Read Codes

Open the scanner’s diagnostic menu.

Select an option such as:

Read Codes
Scan
Diagnostics
Trouble Codes
OBD2
Auto Scan

The scanner will retrieve the information stored in the vehicle computer.

Codes may be separated into several categories.

Stored Codes

Stored codes are confirmed faults that have met the computer’s requirements for recording a problem.

These codes commonly cause the Check Engine Light to turn on.

Pending Codes

Pending codes indicate that the computer detected an abnormal condition but has not yet confirmed it over enough driving cycles.

A pending code may become stored if the problem happens again.

Permanent Codes

Permanent codes are emissions-related faults that remain until the vehicle confirms that the problem has been repaired.

They normally cannot be removed simply by selecting Clear Codes.

Step 8: Record the Diagnostic Codes

Write down or photograph every code before clearing anything.

A code may look like:

P0300
P0171
P0420
P0455
P0700

Also record:

Code description
Stored or pending status
Freeze-frame data
Vehicle mileage
Readiness monitor status

This information may be important for diagnosing intermittent problems.

Clearing the codes too early can erase useful evidence.

How to Understand a Code Reader Result

A standard OBD2 code contains one letter and four numbers.

For example:

P0301

The first letter identifies the main system.

P means powertrain
B means body
C means chassis
U means network communication

The second character indicates whether the code is generic or manufacturer-specific.

The remaining characters identify the fault category and specific condition.

P0301 generally means the vehicle detected a misfire in cylinder one.

However, the code does not prove which component failed.

Possible causes may include:

Worn spark plug
Failed ignition coil
Fuel injector problem
Vacuum leak
Damaged wiring
Low compression

The code tells you where to begin testing.

Does the Engine Need to Be Running?

The engine usually does not need to be running to retrieve stored codes.

Use the ignition-on, engine-off position when:

Reading stored codes
Checking pending codes
Viewing readiness monitors
Clearing codes after repairs
Checking vehicle information

The engine may need to run when viewing live data such as:

Engine RPM
Fuel trims
Oxygen sensor readings
Coolant temperature
Airflow readings
Ignition timing

Some tests require the engine to reach operating temperature.

Keep the scanner cable away from pedals, steering components, fans, belts, and other moving parts.

How to Connect a Bluetooth Code Reader

A Bluetooth code reader plugs into the same OBD2 port as a wired scanner.

Turn the ignition off and insert the adapter into the diagnostic connector.

Turn the ignition to ON.

Install and open the compatible diagnostic app on your smartphone or tablet.

Depending on the adapter, you may need to pair it through the phone’s Bluetooth settings. Other devices connect directly through the app.

Choose the correct adapter and vehicle profile inside the app.

Once connected, the app may display:

Trouble codes
Code descriptions
Live sensor data
Readiness monitors
Dashboard gauges
Freeze-frame information

Use a reputable adapter and application. Very cheap adapters may have unstable connections, limited protocol support, or inaccurate data.

How to Connect a Wi-Fi Code Reader

A Wi-Fi OBD2 adapter also plugs into the diagnostic port.

After connecting it and turning on the ignition, open your phone’s Wi-Fi settings.

Select the network created by the adapter.

Then open the compatible diagnostic app and connect to the vehicle.

Your phone may temporarily lose internet access while connected to the adapter. This is normal for some Wi-Fi scanners.

Follow the manufacturer’s instructions for any required password, network setting, or IP address.

Why Is the Code Reader Not Turning On?

A wired scanner normally receives power from the OBD2 port.

If it does not turn on, possible causes include:

Scanner not fully inserted
Blown OBD2 fuse
Weak or dead vehicle battery
Damaged diagnostic connector
Bent power or ground pins
Faulty scanner cable
Defective reader

On some vehicles, the diagnostic connector shares a fuse with the cigarette lighter or accessory power outlet.

Check the correct fuse diagram before replacing anything.

Never install a fuse with a higher amperage than the manufacturer specifies.

Testing the scanner on another compatible vehicle can help determine whether the problem is with the scanner or your car.

Why Does the Scanner Say No Link?

A “No Link,” “Unable to Connect,” or “Communication Error” message means the scanner has power but cannot communicate with the vehicle computer.

First, make sure the ignition is fully in the ON position.

Then turn the ignition off, unplug the scanner, reconnect it, and repeat the process.

Other possible causes include:

Unsupported vehicle
Incorrect scanner settings
Low battery voltage
Damaged communication wiring
Faulty control module
Outdated scanner software
Aftermarket electronics interfering with the network

A basic scanner may also connect to the engine computer but fail to communicate with ABS, airbag, transmission, or body modules because it does not support them.

Can a Basic Code Reader Read Every Warning Light?

No.

A basic OBD2 reader is mainly designed for Check Engine Light and emissions-related codes.

It may not read:

ABS codes
Airbag or SRS codes
Electronic parking brake faults
Body control module codes
Advanced transmission codes
Steering system faults

To access these systems, you need a scanner that specifically supports them.

Check the scanner’s coverage before purchasing it.

Should You Clear the Codes?

Clear codes only after you record the information and repair or inspect the suspected problem.

Clearing codes may erase:

Stored codes
Pending codes
Freeze-frame data
Fuel-trim information
Readiness monitor results

The Check Engine Light may turn off temporarily even when the problem remains.

If the fault is still present, the code will return after the vehicle detects it again.

Clearing emissions codes also resets readiness monitors. The vehicle may not be ready for an emissions inspection until it completes the required drive cycles.

Can You Leave the Reader Connected?

A basic handheld reader should usually be disconnected after use.

Some Bluetooth adapters and vehicle monitors are designed for continuous connection, but low-quality devices may continue drawing battery power while the vehicle is parked.

Leaving a reader connected may cause:

Battery drain
Diagnostic network interference
Wireless security concerns
Physical damage to the port
Interference near the driver’s legs

Remove the device when you finish unless the manufacturer specifically states that it is designed to remain connected.

Safety Tips When Using a Code Reader

Using a code reader is generally safe when it is connected correctly.

Follow these precautions:

Park before connecting the reader.
Keep the ignition off while inserting the plug.
Do not force the connector.
Never bridge OBD2 terminals.
Keep cables away from pedals.
Do not operate the scanner while driving.
Record codes before clearing them.
Stop scanning if the connector becomes hot.

A code reader communicates with sensitive electronic modules. Use reliable equipment and follow the manufacturer’s instructions.

Final Thoughts

Learning how to hook up code reader to car involves locating the 16-pin OBD2 port, connecting the scanner with the ignition off, switching the ignition to ON, and selecting the option to read diagnostic trouble codes.

Record stored, pending, and permanent codes before clearing anything. Save freeze-frame information when available, and remember that a code identifies the system or condition that needs investigation—it does not automatically confirm which part has failed.

If the reader does not turn on, check the connection, battery, and diagnostic-port fuse. If it powers on but cannot communicate, verify the ignition position, scanner compatibility, and vehicle diagnostic system.
